Vulcan Solar Project


Involvement

Lucas & Ceren Redrup were contracted to complete several detailed design packages including 30%, 60%, 90% & IFC design levels for this project. This included DC Electrical Engineering, Mechanical Engineering, Field Control Systems Engineering and interface work with MV Engineers, SCADA Engineers and Civil Engineers.

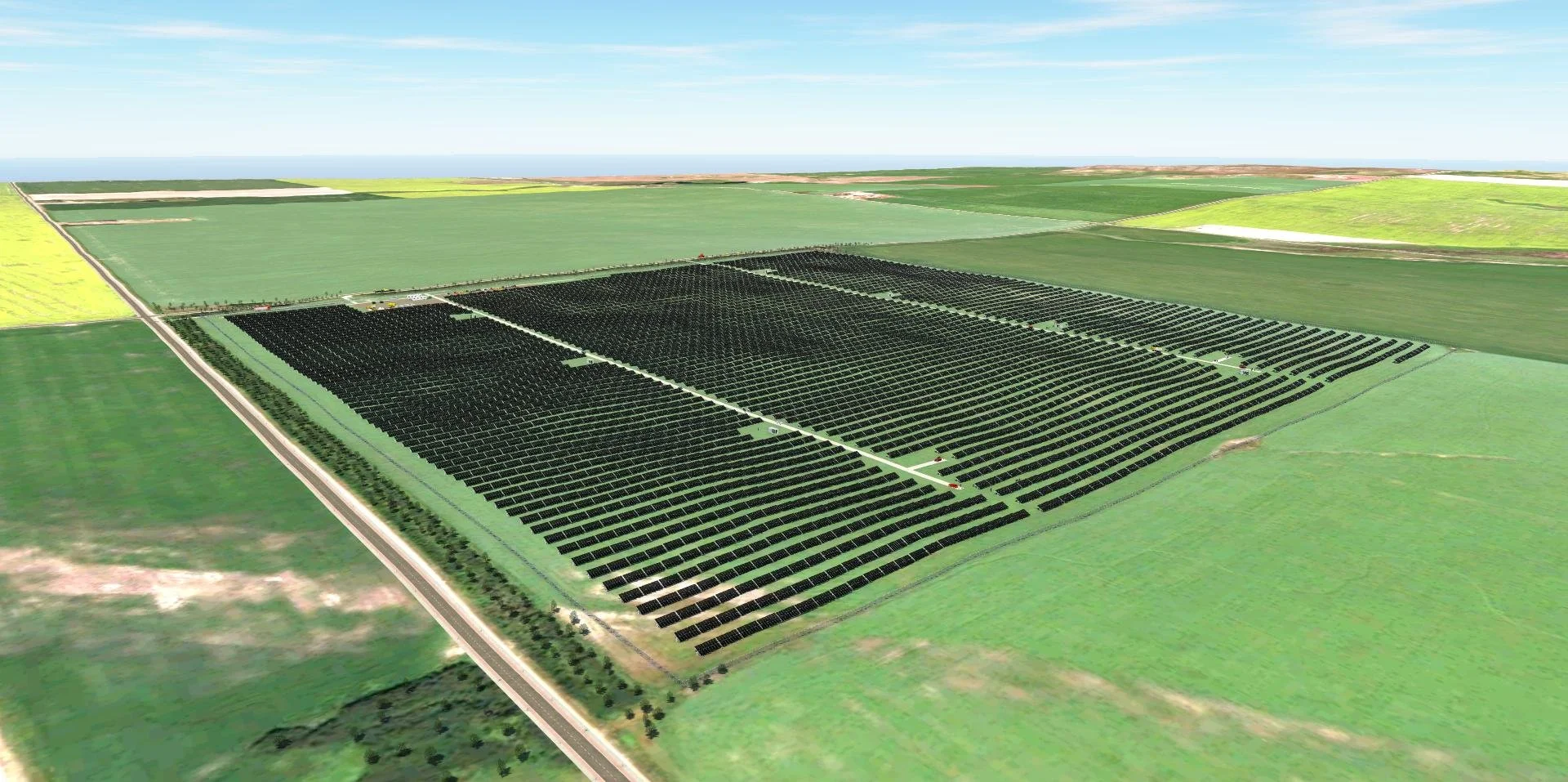

For this project, additional development work was also completed utilizing the Visual Impact services offered by Bolt and Forge. These services were used for Stake Holder assessments and can be seen in the 3D renders below along side the finalized project images.

 Equipment & Rough Quantities

  • 145 Acre Project Area

  • 22,000 kWAC & 35,200 kWDC

  • 78,720 x Solar Modules

  • 4,920 x Fixed Tilt Racking Tables

  • 140 x Combiner Boxes

  • 7 x Inverter Transformer Skids

Products Offered

  • DC Electrical & Mechanical Engineering - General Package

  • DC Electrical Engineering - Schematics Package

  • DC Electrical Engineering - Trenching Design Package

  • DC Electrical Engineering - Module String Design Package

  • DC Electrical Engineering - Wire Management Package

  • DC Electrical Engineering - Combiner Box Package

  • Mechanical Engineering - Racking Discretization Package

  • Mechanical Engineering - Basic Visual Impact Design Package
